Product Description：

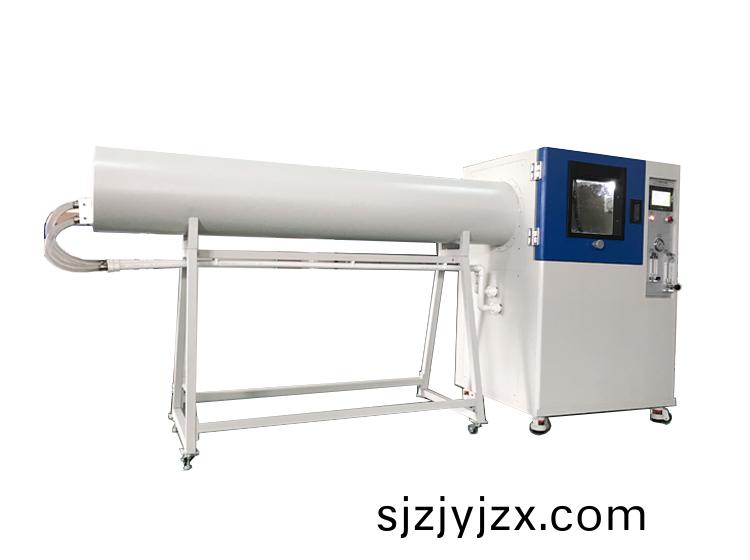

BND-IPX56BS IPX5 IPX6 Strong water spray test chamber
|
Model |
IPX56BS-500L |
IPX56BS-700L |
IPX56BS-1400L |
IPX56BS-1700L |
IPX56BS-1900L |
|
Inner size(mm)W*D*H |
800*800*800 |
900*900*900 |
1180*1180*1000 |
1180*1180*1180 |
1180*1180*1300 |
|
Outer size(mm)W*D*H |
4000*1050*1600 |
1150*1150*1700 |
4000*1450*1800 |
4000*1450*1850 |
4000*1450*2000 |
|
Turntable diameter(mm) |
600 |
600 |
800 |
¢800 |
800 |
|
IPX5 diameter(mm) |
6.3 |
||||
|
IPX6 diameter(mm) |
12.5 |
||||
|
IPX5 flow(L/min) |
12.5±0.625 |
||||
|
IPX6 flow(L/min) |
100±5L/min |
||||
|
Power(Mpa) |
According to the provisions of water flow regulation |
||||
|
spray water distance |
2.5M |
||||
|
Pump |
stainless steel multi-stage pump |
||||
|
Spray nozzle fixing method |
machinery fixation |
||||
|
Water pipe materials |
Stainless steel+PPR |
||||
|
Inner box materials |
SUS304#stainless steel |
||||
|
Sample table materials |
SUS304#stainless steel plate |
||||
|
protector |
Electric leakage, water-break, cutting-out |
||||
|
Power supply(V) |
380V |
||||
|
Power(KW) |
3 |
||||
|
Standard |
IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6) |
||||
