Product Description：

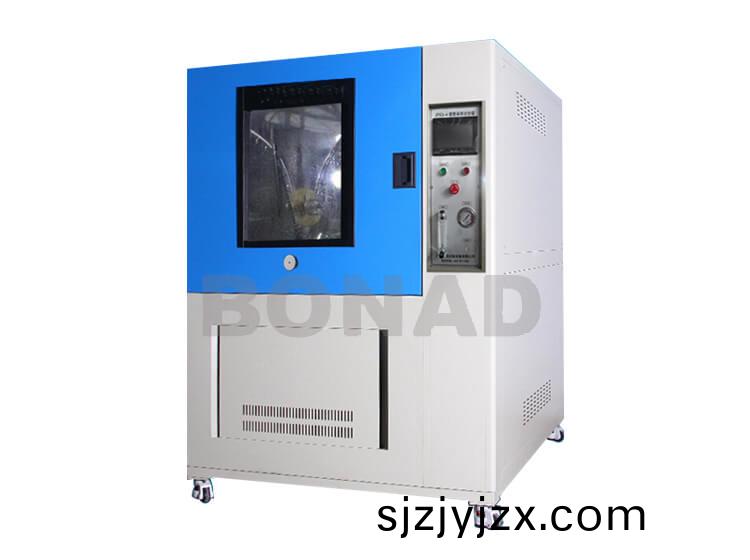

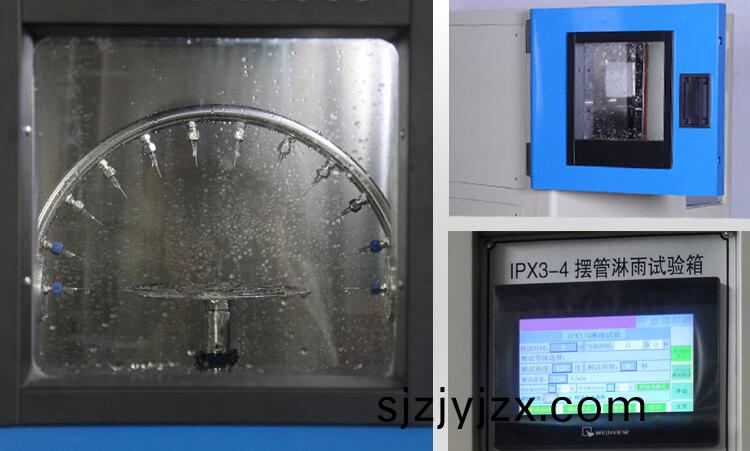

IPX34B rain Box test chamber
Type：BND-IPX34B
| Technology parameter： | ||||
| No. | model | BND-IPXB-R200 | BND-IPX34B-R400 | BND-IPX34B-R600 |
| 1 | Swing pipe size (mm) | R200 | R400 | R600 |
| 2 | External dimensions (mm) | L500*D500*H500mm | L900*D900*H900mm | L1300*D1300*H1300mm |
| 3 | Outer size(mm) | L1000*D680*H1440mm | L1400*D1080*H1900mm | L1740*D1480*H1950mm |
| 4 | Flow (L / mm)) | 0-1L/Min | 0-2L/Min | 0-3L/Min |
| 5 | Turntable Size (mm) | ￠200 | ￠400(can add ￠200) | ￠600(can add ￠400,￠200) |
| 6 | Turntable height adjustable range | 150-250 mm | 350-600mm | 550-1000mm |
| 7 | Spray aperture diameter (mm) | 0.4 | ||
| 8 | swing pipe inner diameter (mm) | 15 | ||
| 9 | Swing angle | 120°(IPX3), 350°(IPX4), or customize | ||
| 10 | Swing speed | 120°(to and fro) 4S、360°(to and fro) 12S(accurate control)or customize | ||
| 11 | Swing pipe material | SUS304 stainless steel | ||
| 12 | Turntable speed | 1-5r/min(accurate control) | ||
| 13 | protective device | Leakage, water shortage, short circuit | ||
| 14 | Power supply (V) | 220V | ||
| 15 | Power（KW） | 1 | ||
| 16 | Standards | IEC60529:1989+A1:1999、（IPX3、IPX4) | ||
